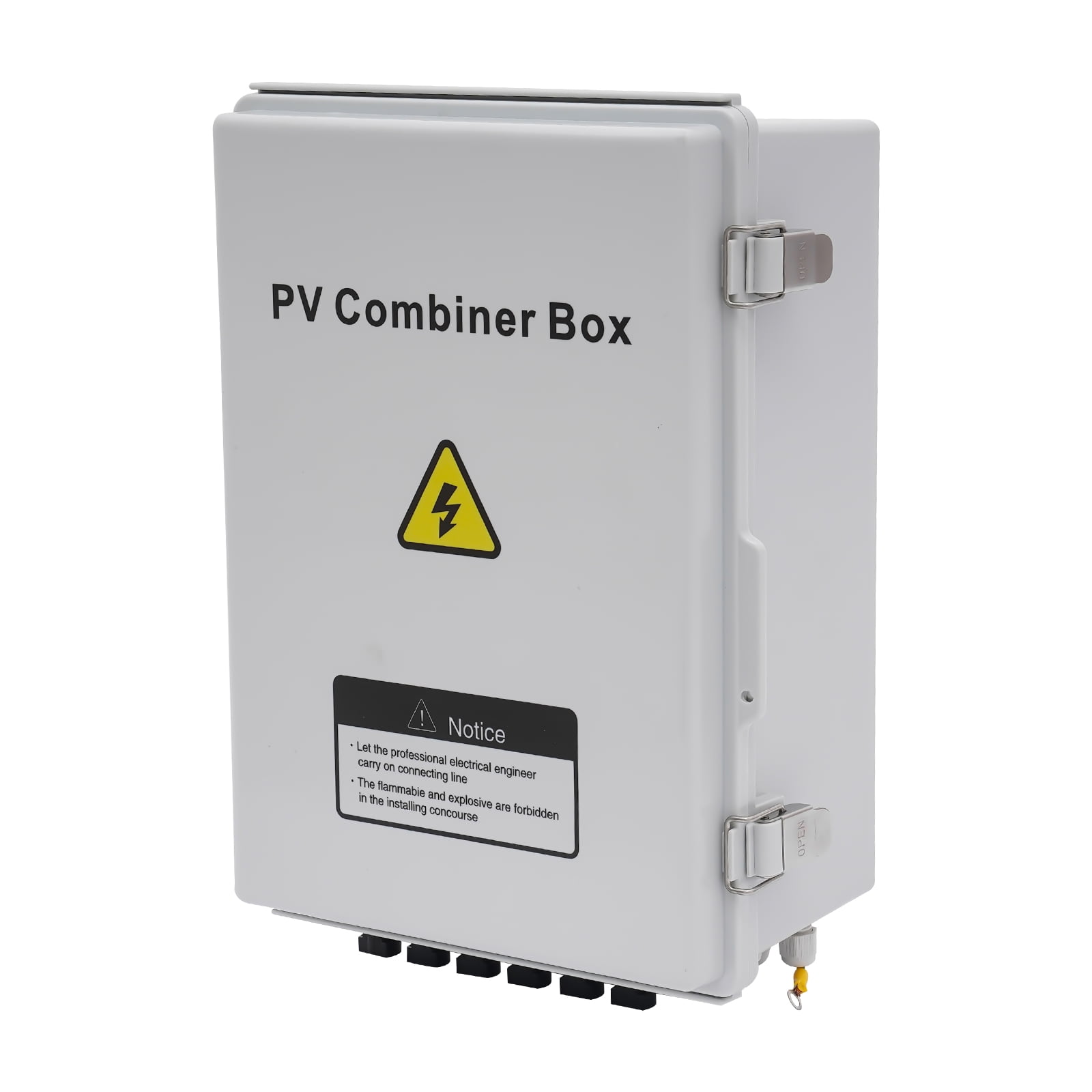

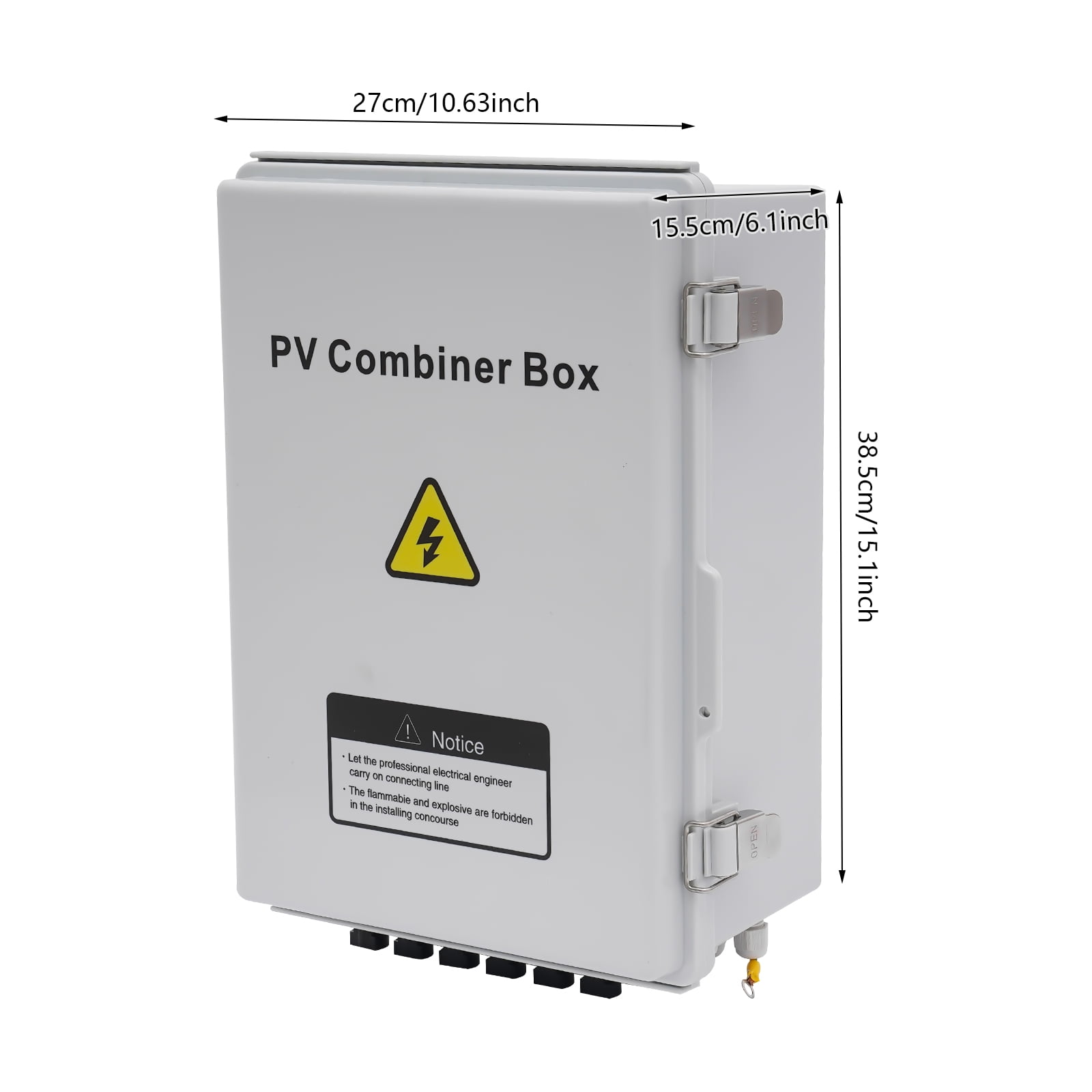

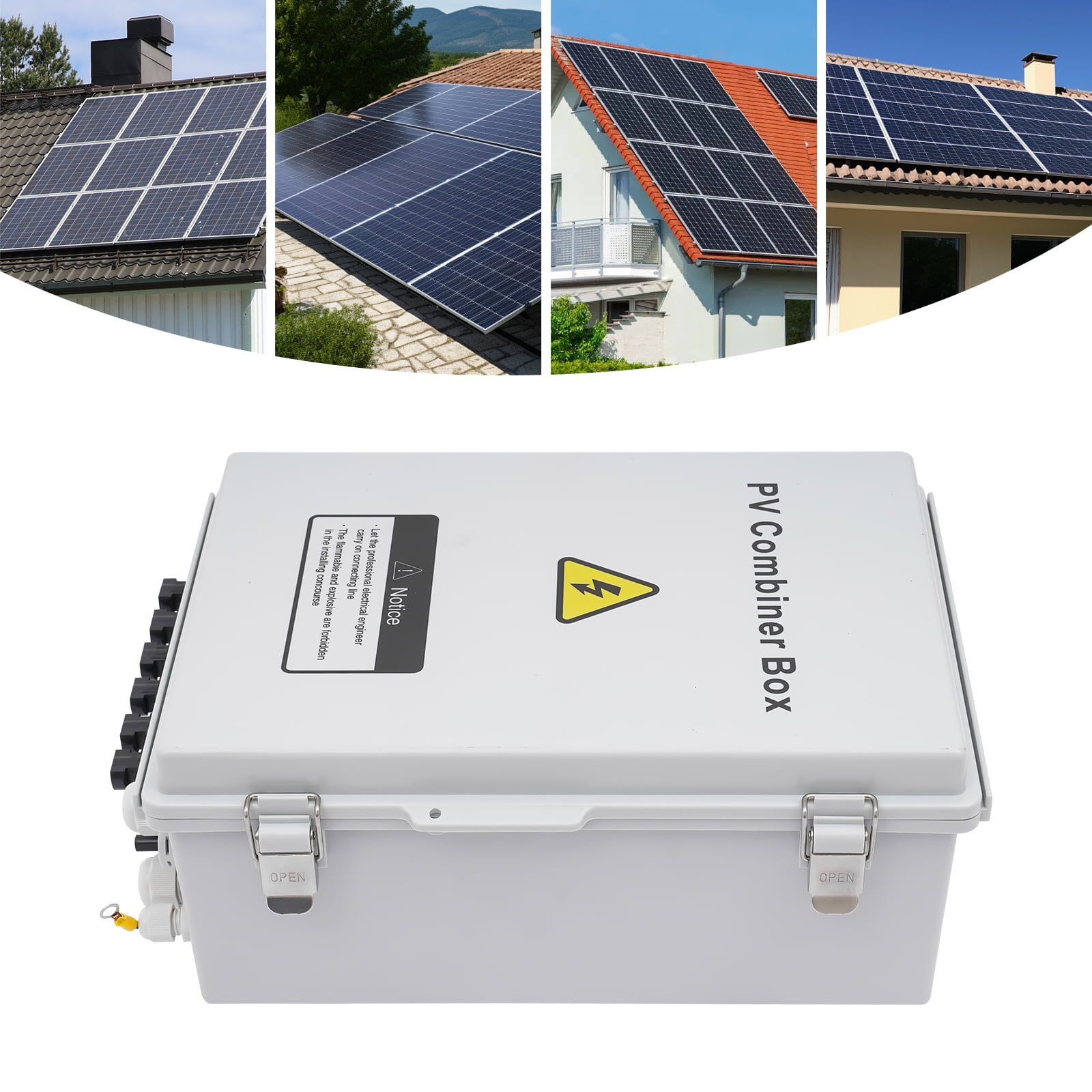

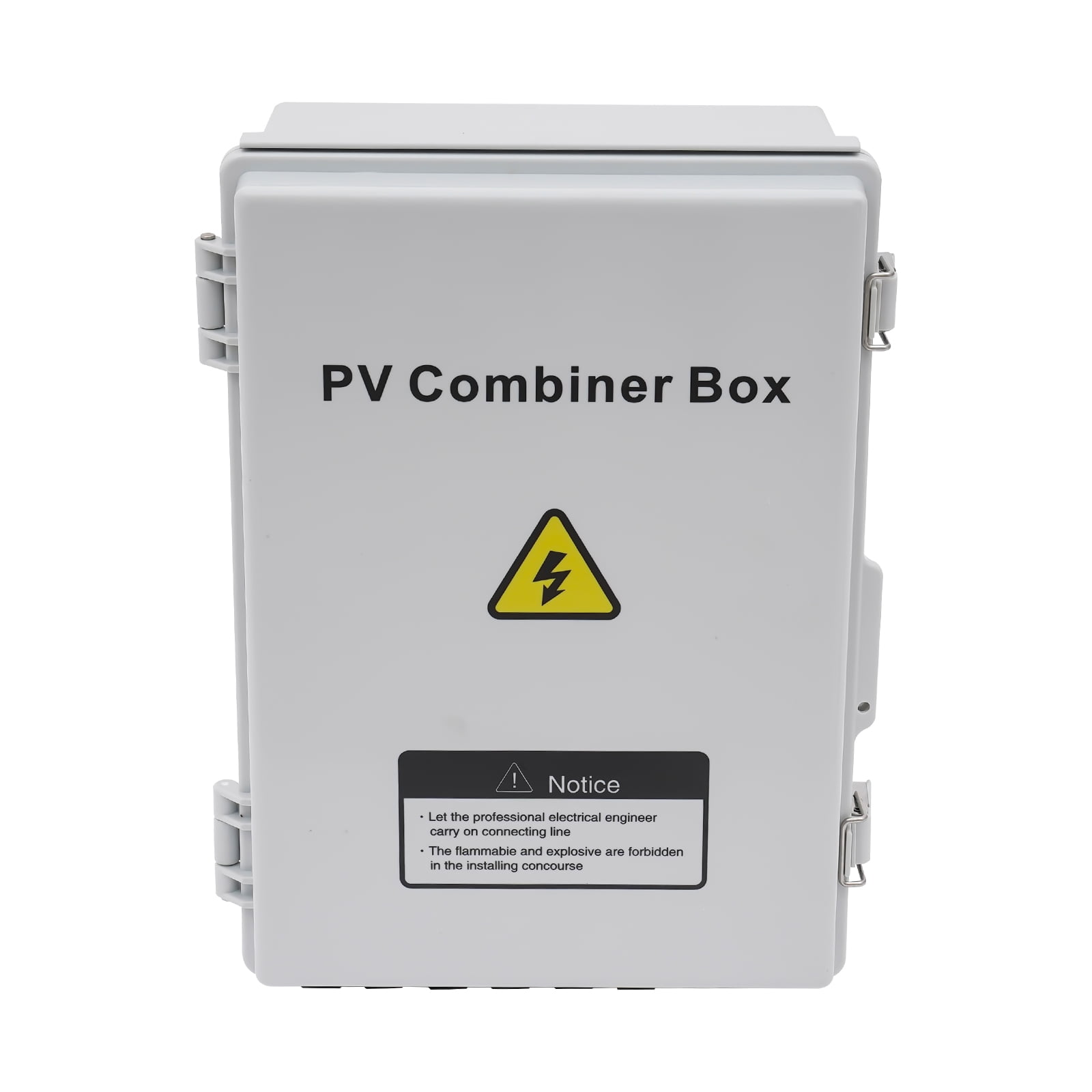

6 String Solar PV Combiner Box, Waterproof 63A Circuit Breaker Junction Box for On/Off Grid Solar Panel System

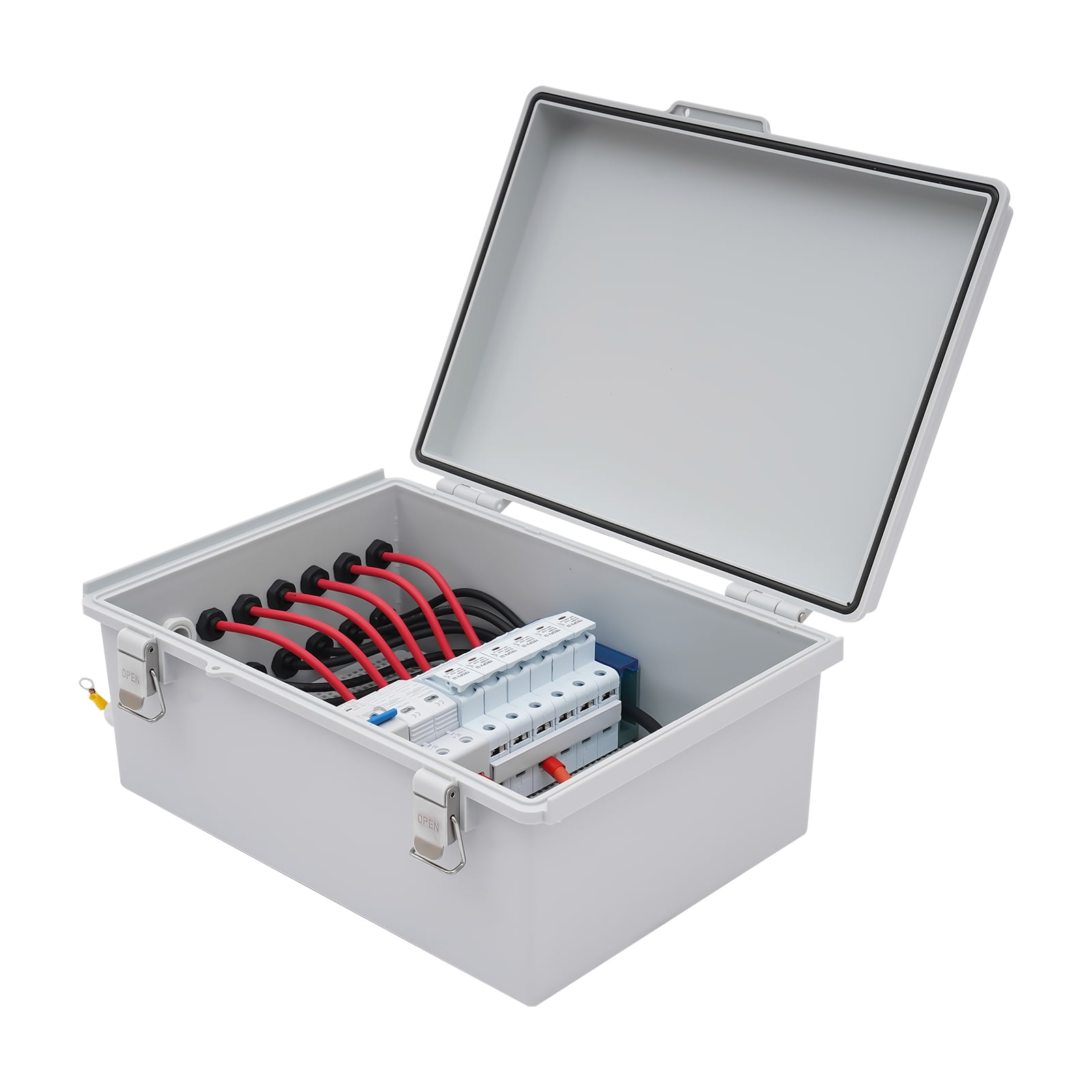

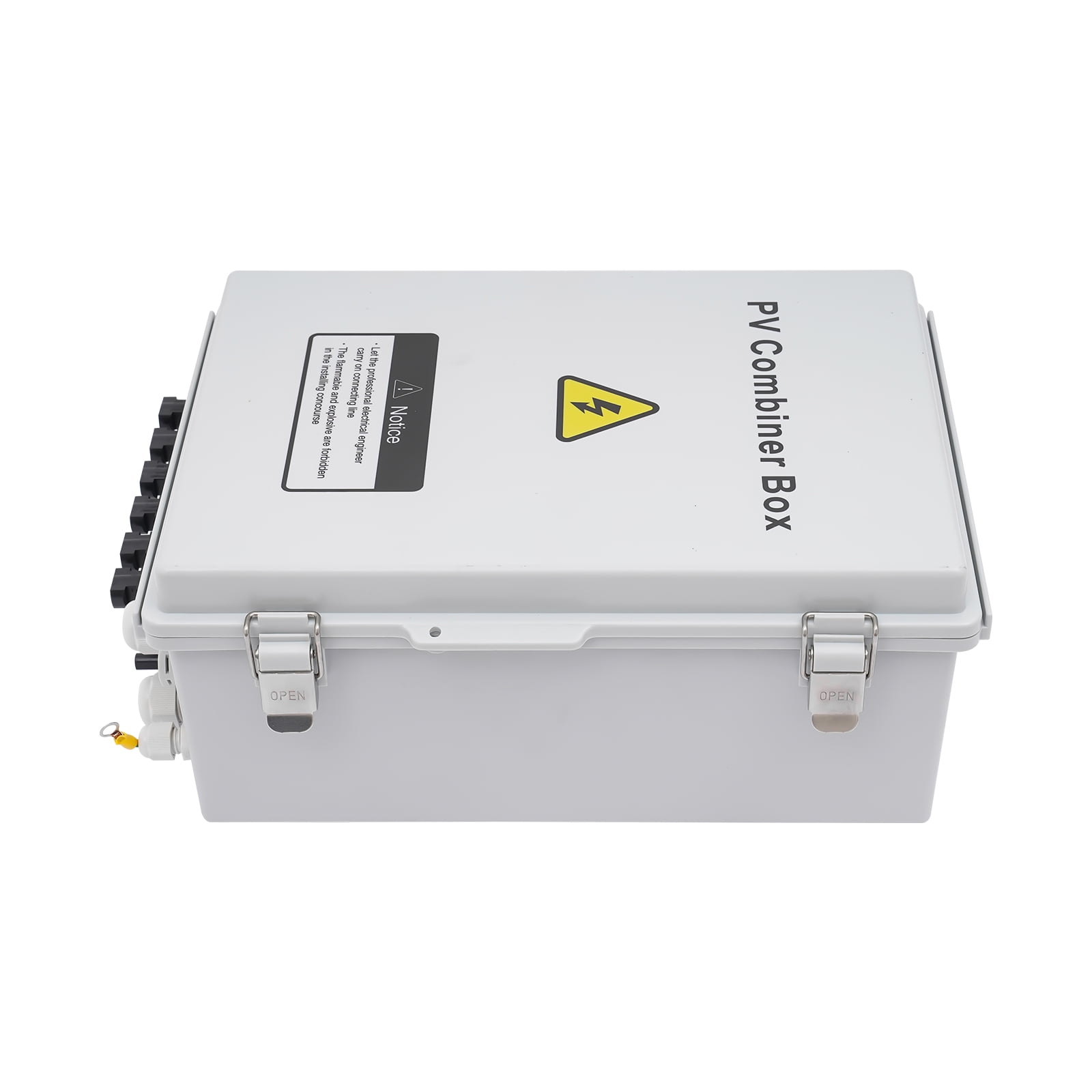

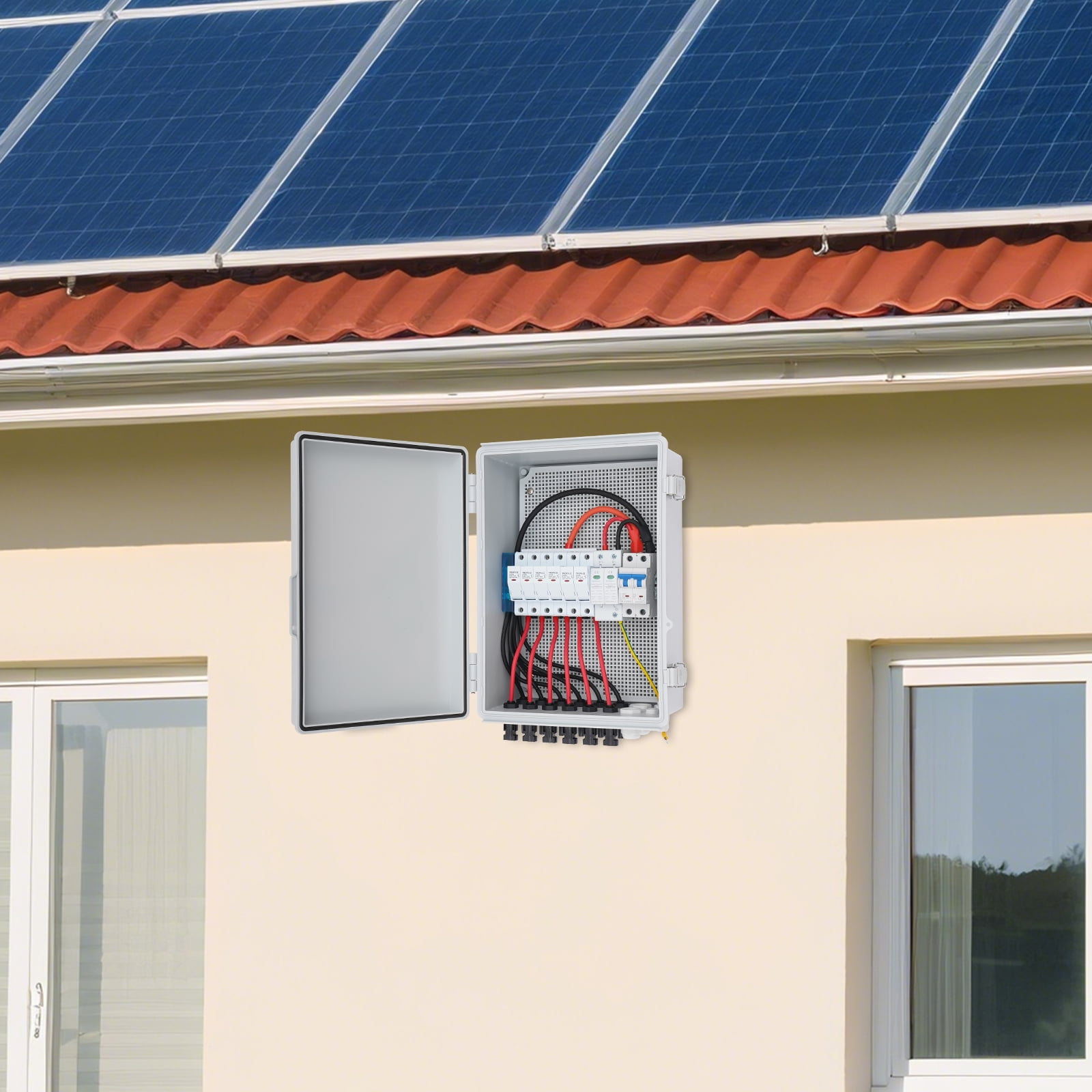

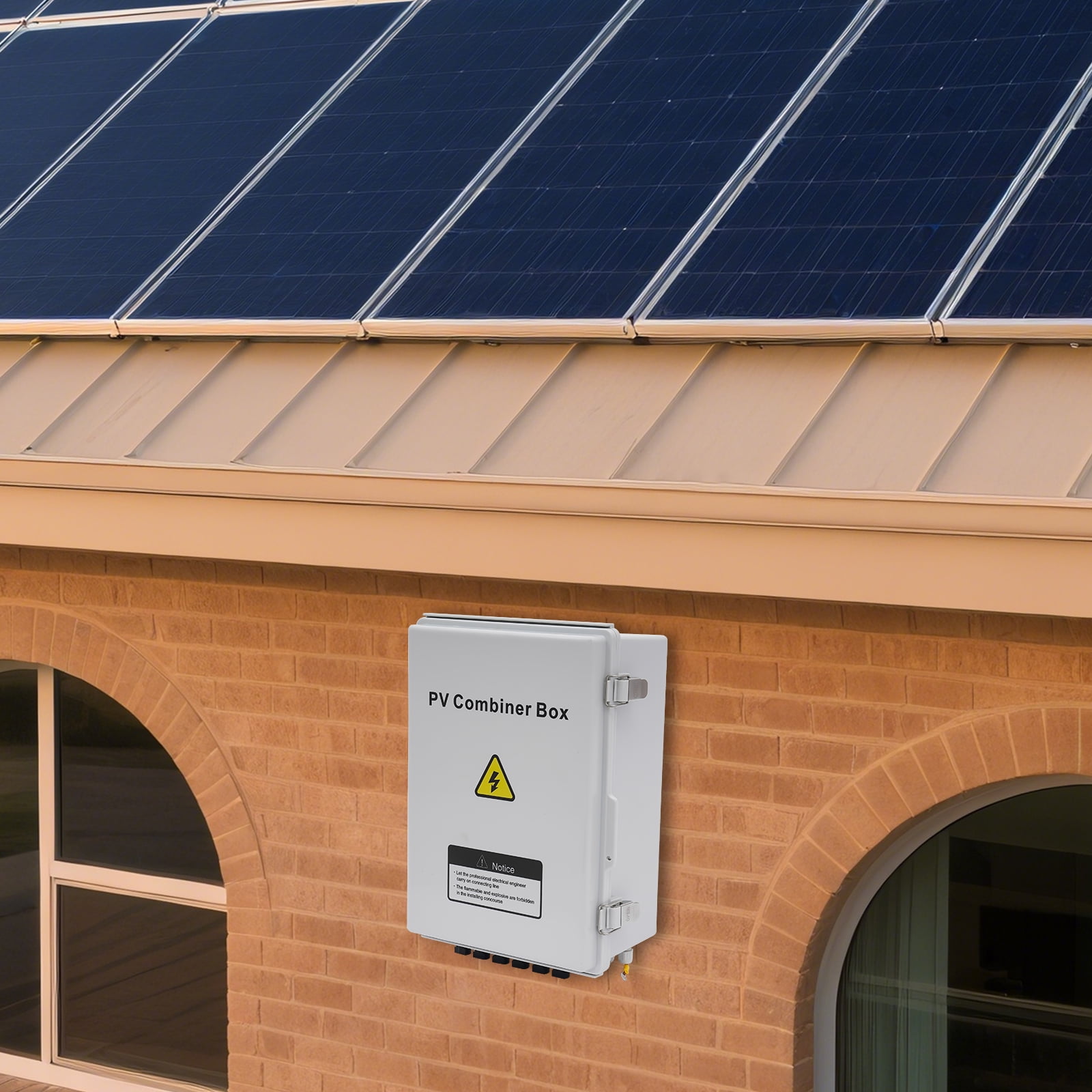

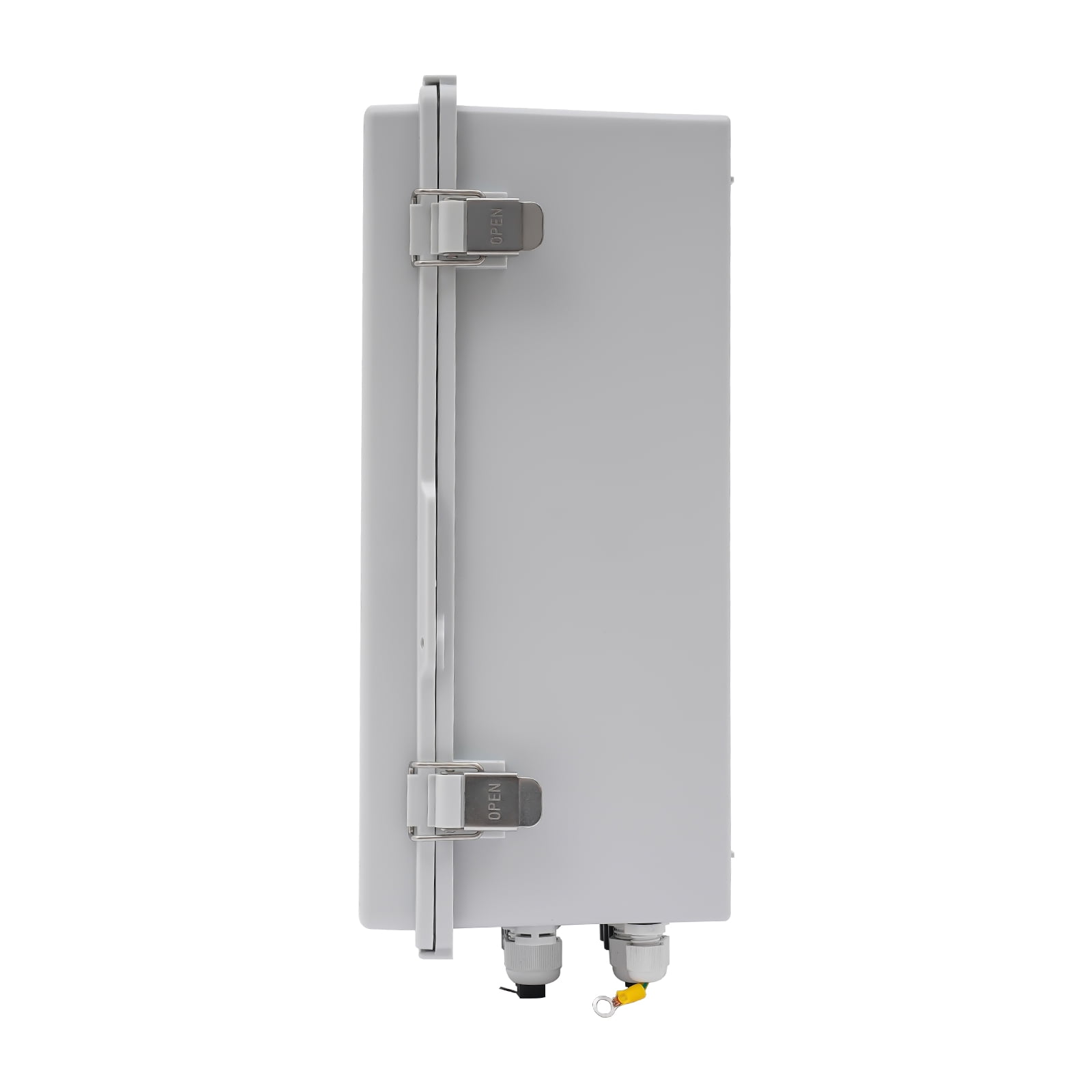

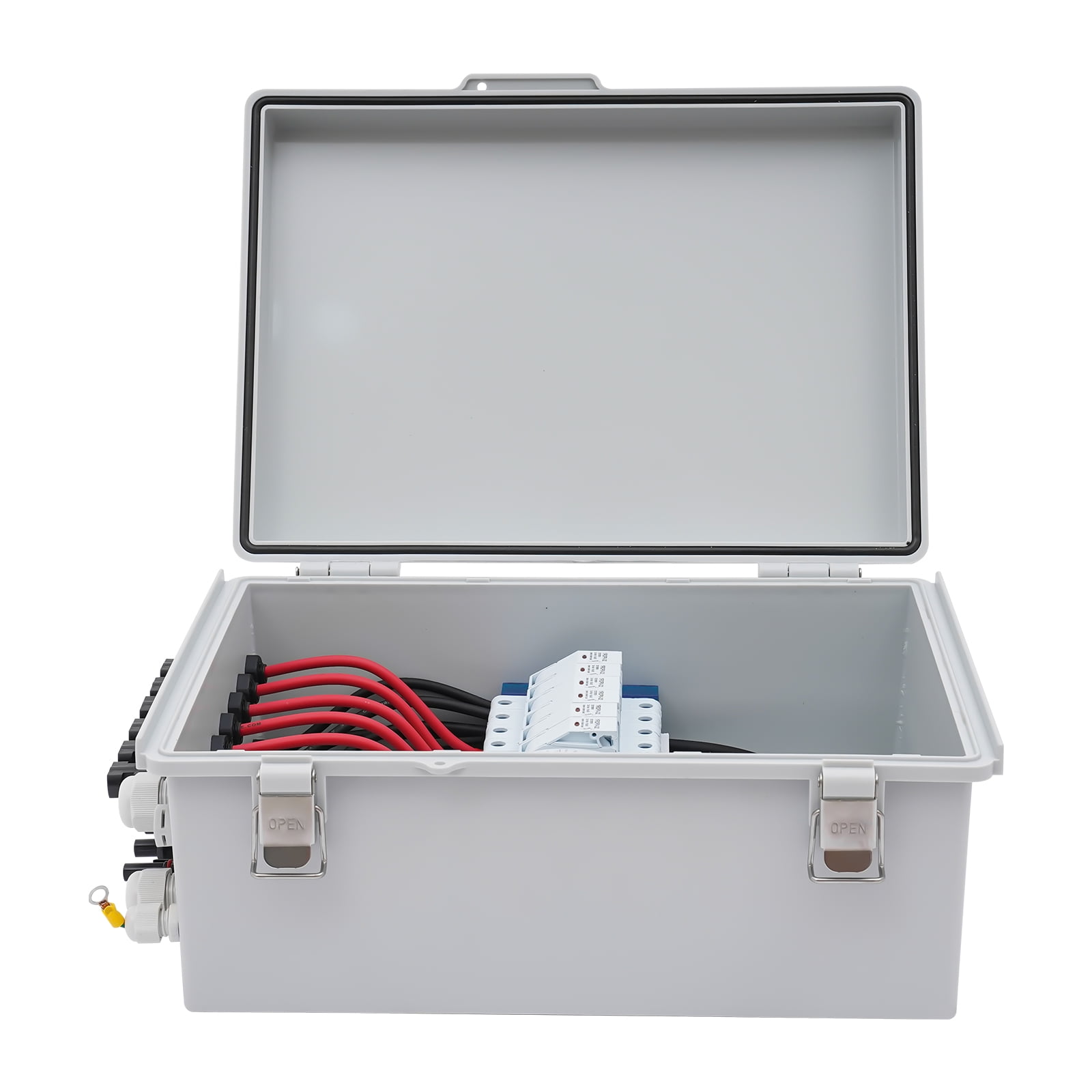

6 String Solar PV Combiner Box, Waterproof 63A Circuit Breaker Junction Box for On/Off Grid Solar Panel System<br><br>Details<br>Combination Lock: The 3-digital combination lock improves the security of this combiner box.<br><br>Stainless Steel Buckles: Compared with plastic buckles, stainless steel buckles are more durable and beautiful and allow for easy opening&amp;close of this box.<br><br>Round Corners: The round corners rather than sharp can prevent scratching your hands. <br><br>Vent Valve: It can prevent chamber condensation due to the large temperature difference between the inside and outside. <br><br>Application<br>The PV combiner box is suitable for photovoltaic on-grid/off-grid solar power generation systems, solar panel systems, PV arrays, RV solar power, and home solar panel systems and is mainly used with solar panels in office buildings, industrial factories, residential buildings, carports, etc. It can support solar panel systems up to 720W in a 12V system, 1440W in a 24V system, and 2880W in a 48V system. <br><br>Specification<br>Color: White<br>Material: ABS, PC<br>Style: Modern<br>Circuit Breaker Type: Standard<br>Mounting Type: Wall Mount<br>Operating Temperature: -30~70℃/-22~158℉<br>Input: 6 Strings<br>Output: 1 String<br>Number Of Poles: 6<br>Current Rating: 63A<br>Number Of Max. Connection PV Array: 6<br>Max. Input Current of Single PV Array: 15A<br>Total Input Current of PV Array: 90A<br>Max Input Voltage of Single PV Array: 1000V<br>Max Output Voltage: 550V<br>Protection Grade: IP65<br>Relative Humidity: 0-95%, No Condensation<br>Cooling Method: Natural Cooling<br>Number of Surge Protection Devices: 1<br>Surge Protection Device: 40KA, 600V<br>Number of Circuit Breakers: 1<br>Circuit Breaker: 63A, 550V<br>Product Size: 27*15*39cm/10.6*5.9*15.35inch<br>Package Size: 35*25*15cm/13.78*9.84*5.9inch<br>Net Weight: 3.2kg/7.05 lbs<br>Gross Weight: 3.5kg/7.7 lbs<br><br>Package Included<br>1* PV Combiner Box<br>1* Combination Lock<br>4* Mounting Plates<br>Other Accessories for Assembly<br> <br>Notes<br>1. The green indicator on the surge protection devices means a normal state. Once it turns "red", please remember to replace it with a new surge protection device.<br>2.Please let the professional electrical engineer carry on connecting line. Ang the flammable and explosive are forbidden in the installing concourse.<br>3.Please pay attention to electricity safety.<br>Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

• Professional and Powerful: PV combiner box tidied up connection and confluence of photovoltaic modules. It is used to reduce the connection of the photovoltaic array to the inverter, optimize the system structure, make it easy to cut off the circuit in maintenance and reduce the scope of the power outage when the photovoltaic system fails. It will make the photovoltaic system at its best and increase output power.

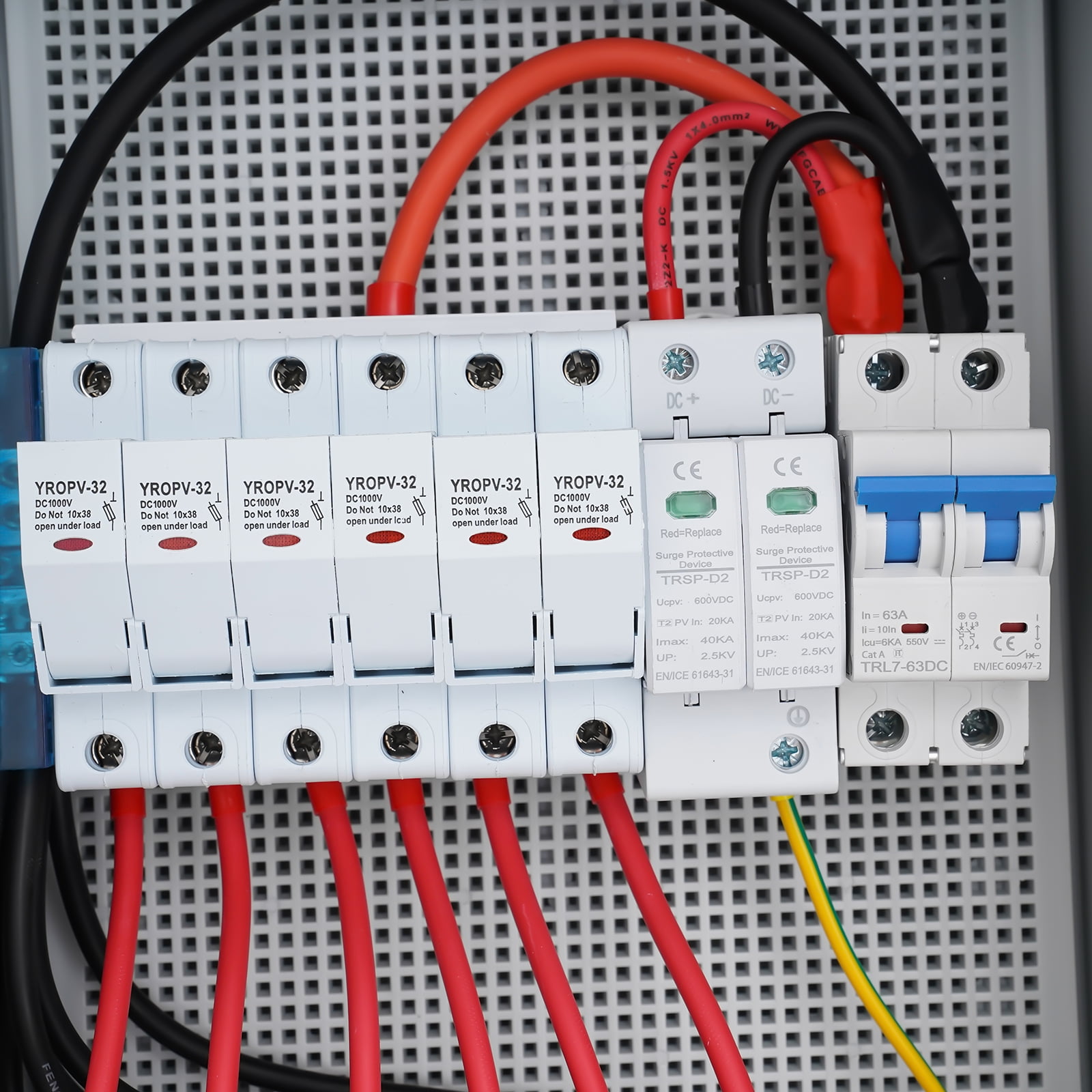

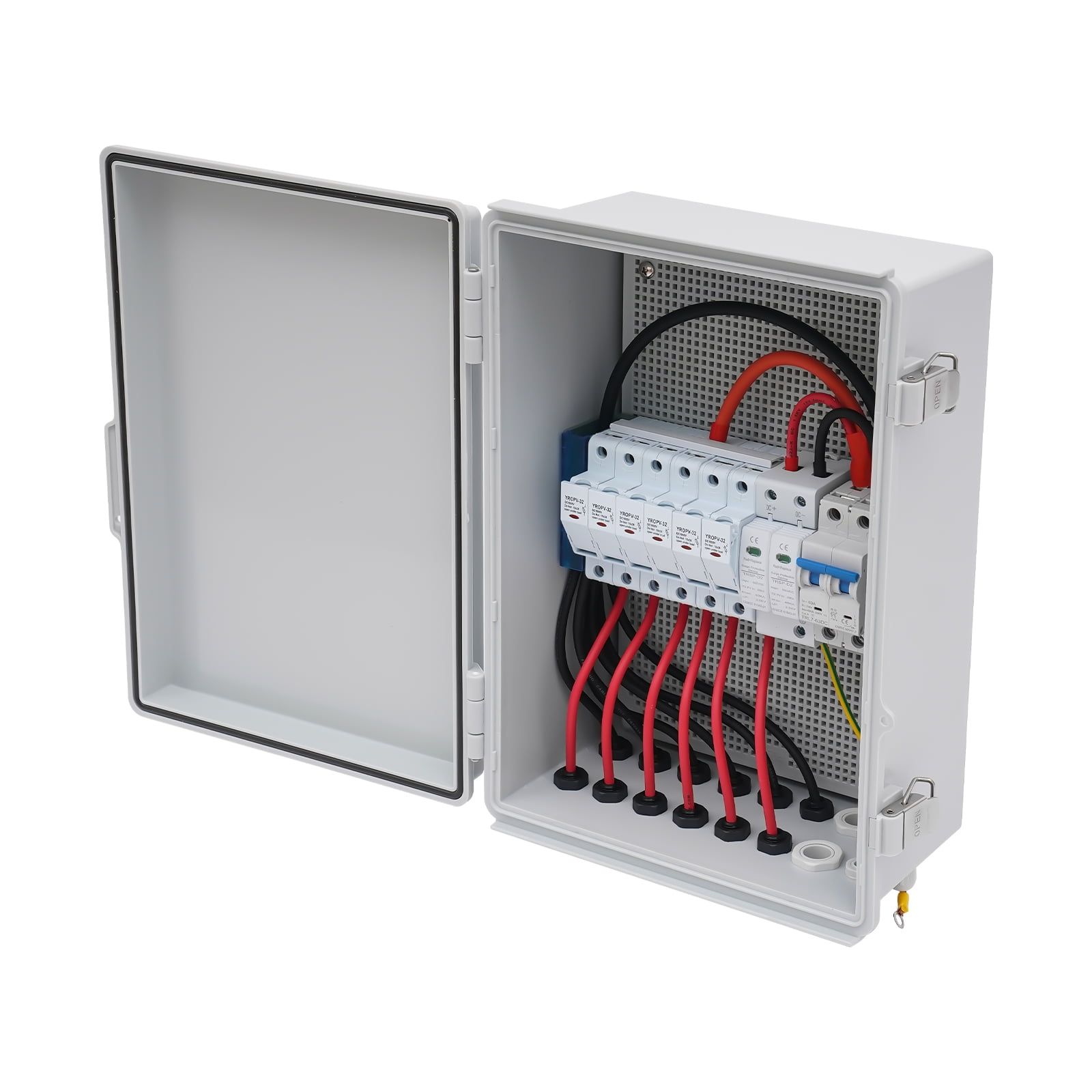

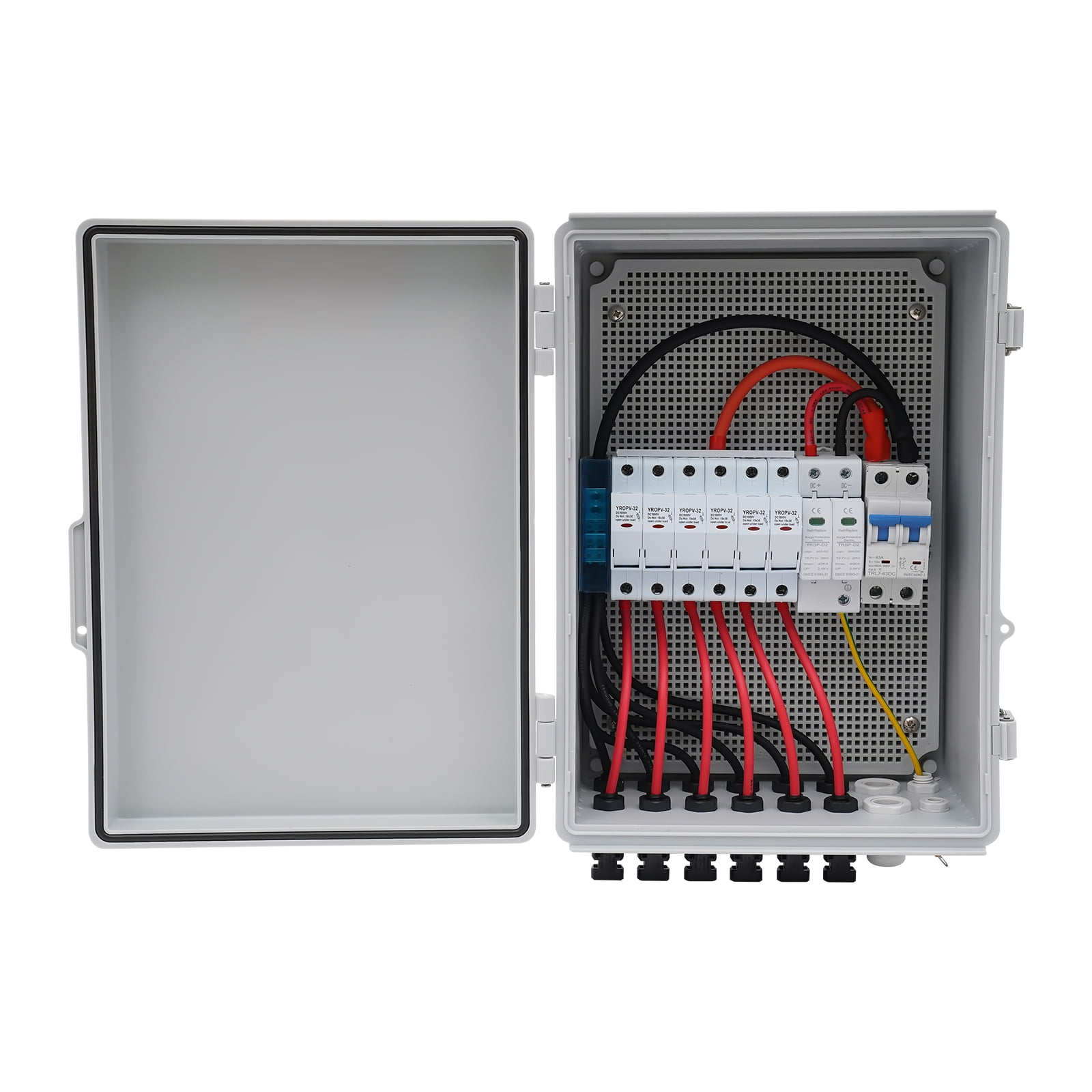

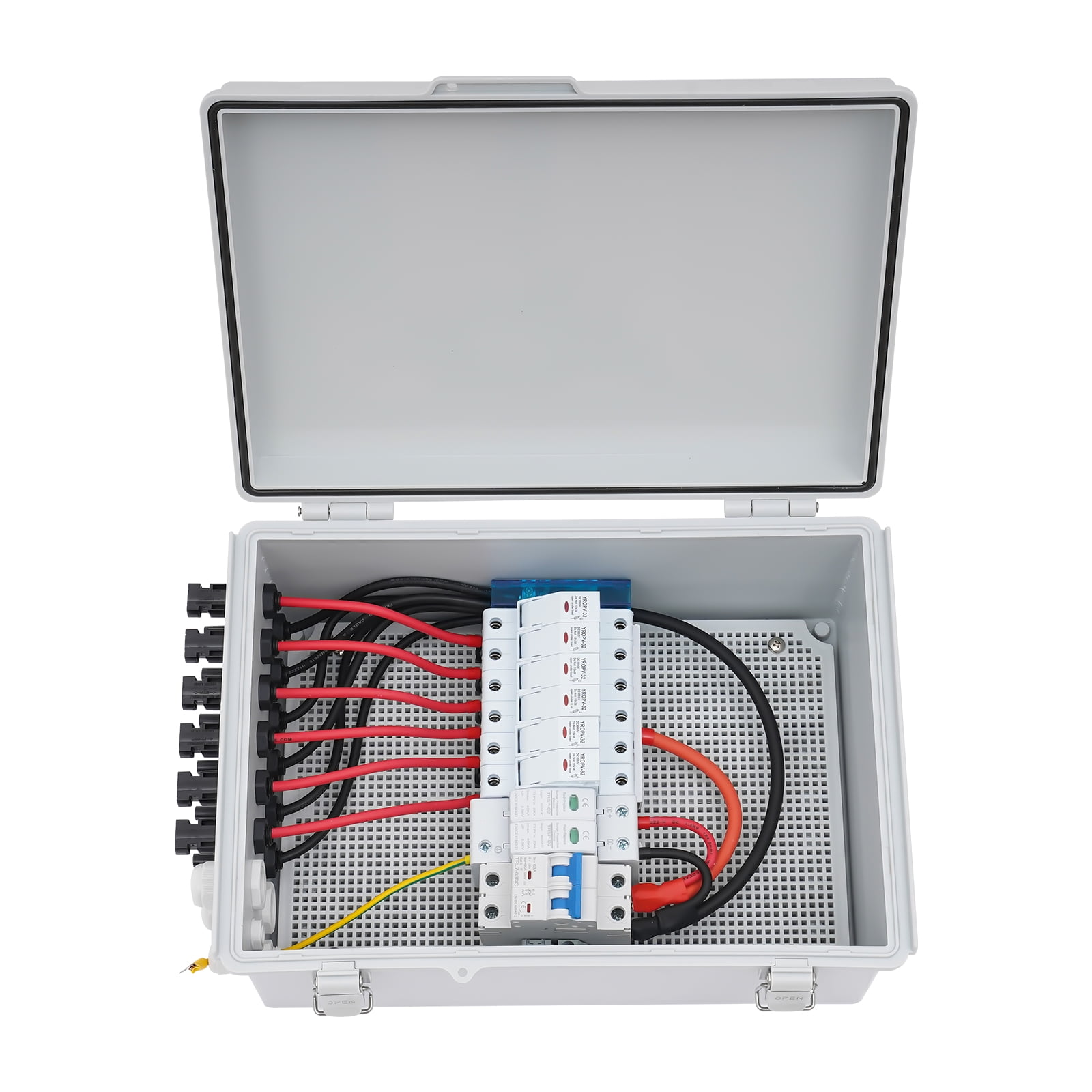

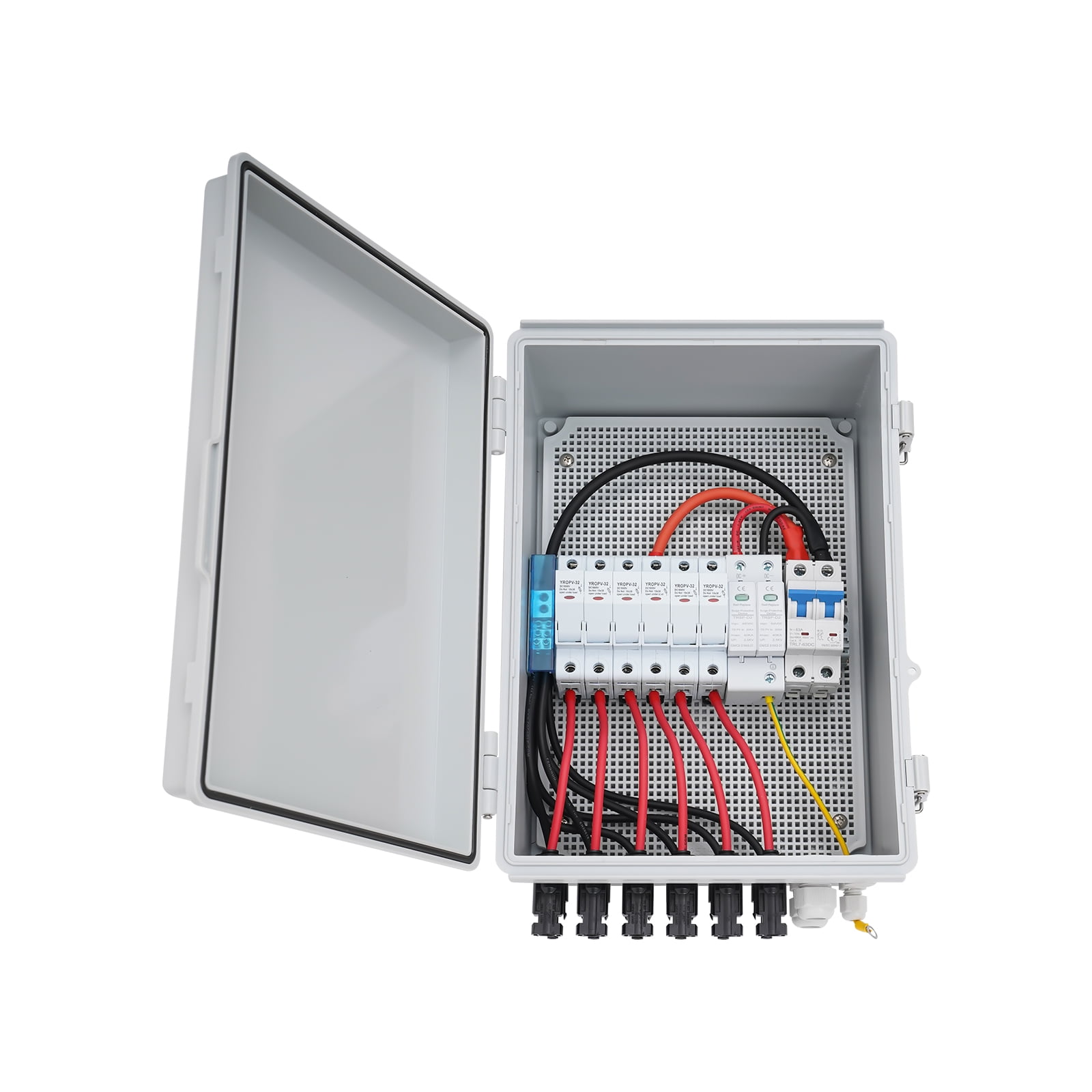

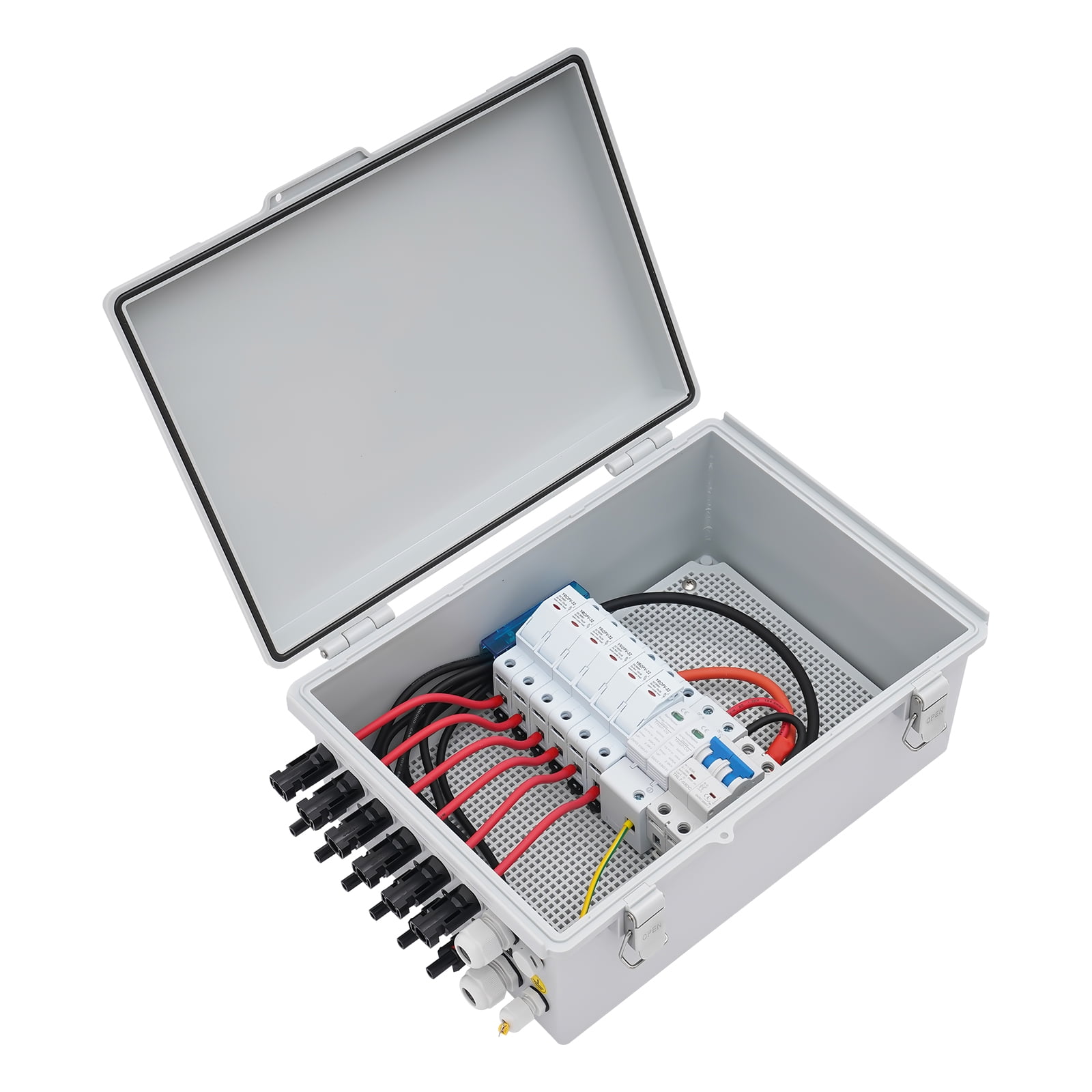

  High Safety: It adopts 6 strings with 15A rated current fuse, a surge protection device, and a 550V 63A circuit breaker, and has short circuit/lightning surge/over-voltage/over-current protection/grounding protection to avoid damage to the photovoltaic panels and inverters when a fault occurs.
• Considerate Design: The LED indicator on the fuse holder will timely display the status of the fuse to facilitate timely replacement.

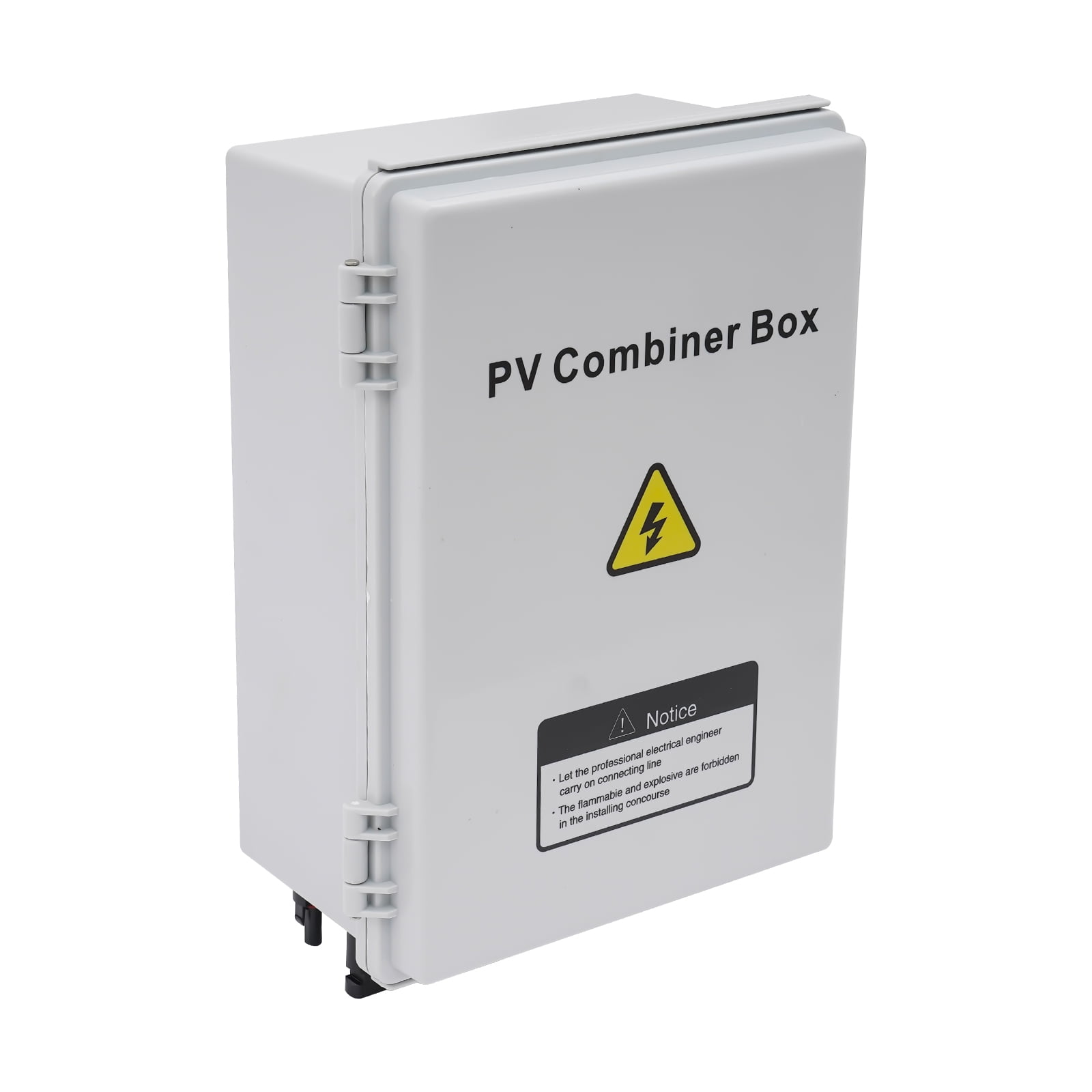

• Waterproof and Dustproof: Its IP65 protection grade with waterproof and dustproof features allows it to be used in harsh environments without frequent replacement.

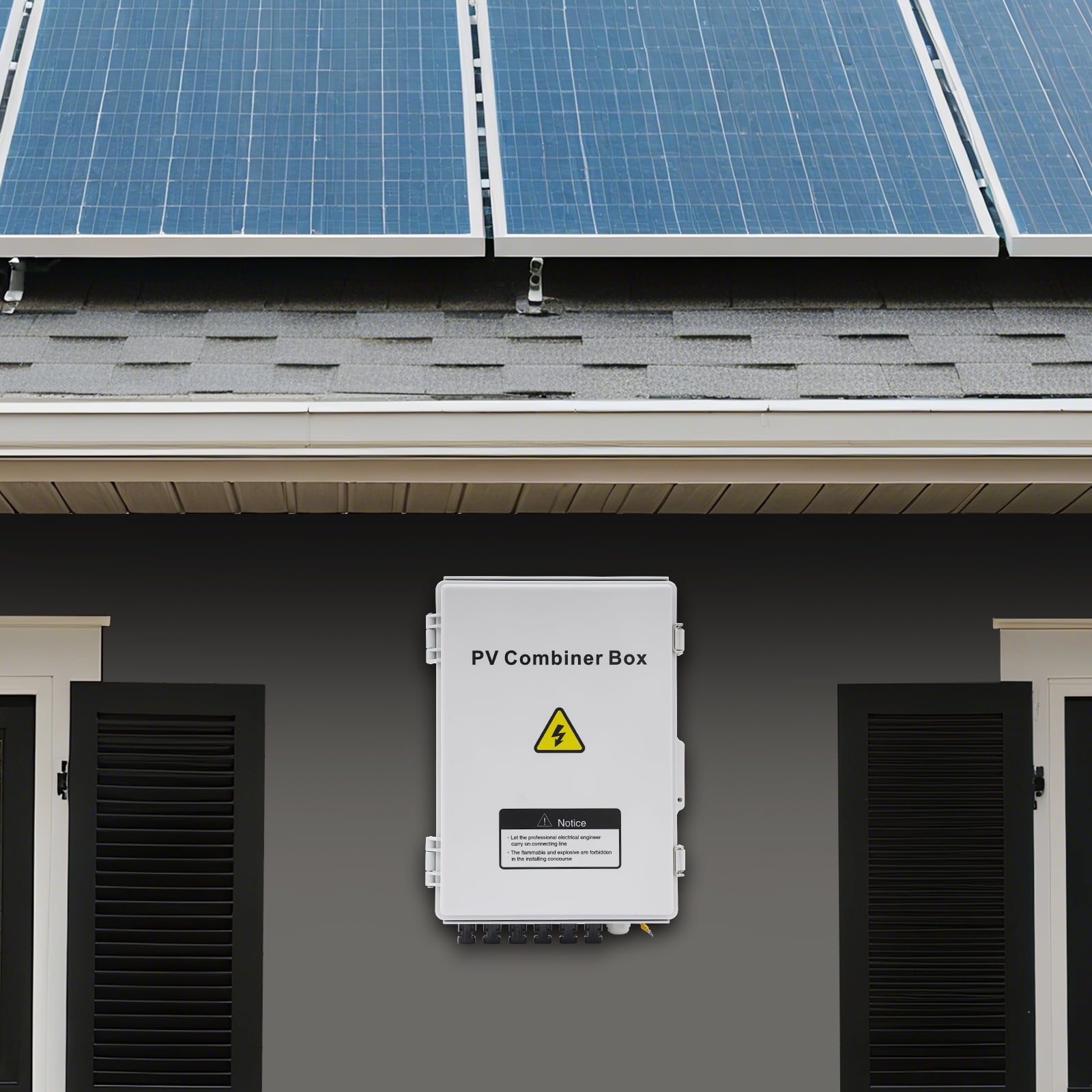

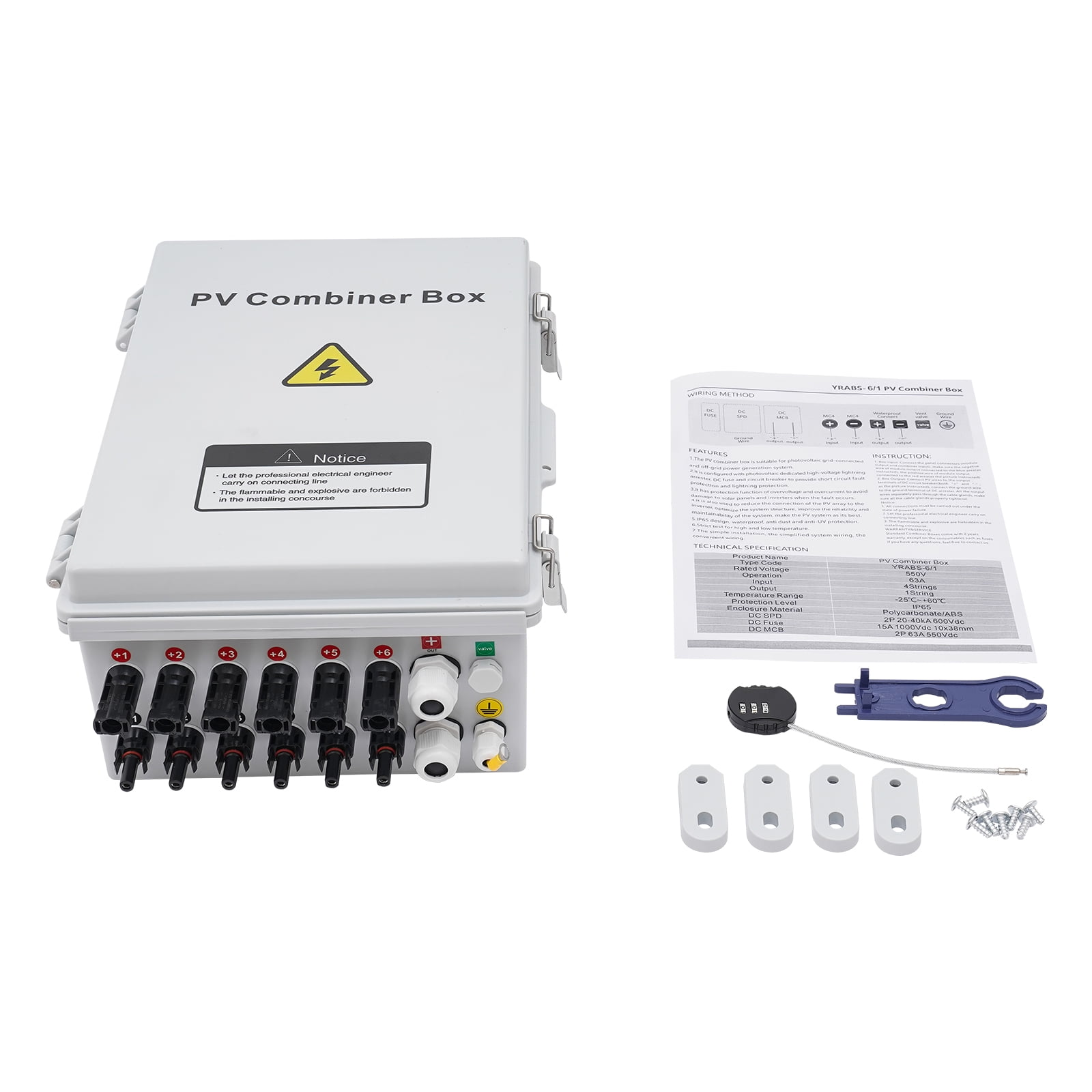

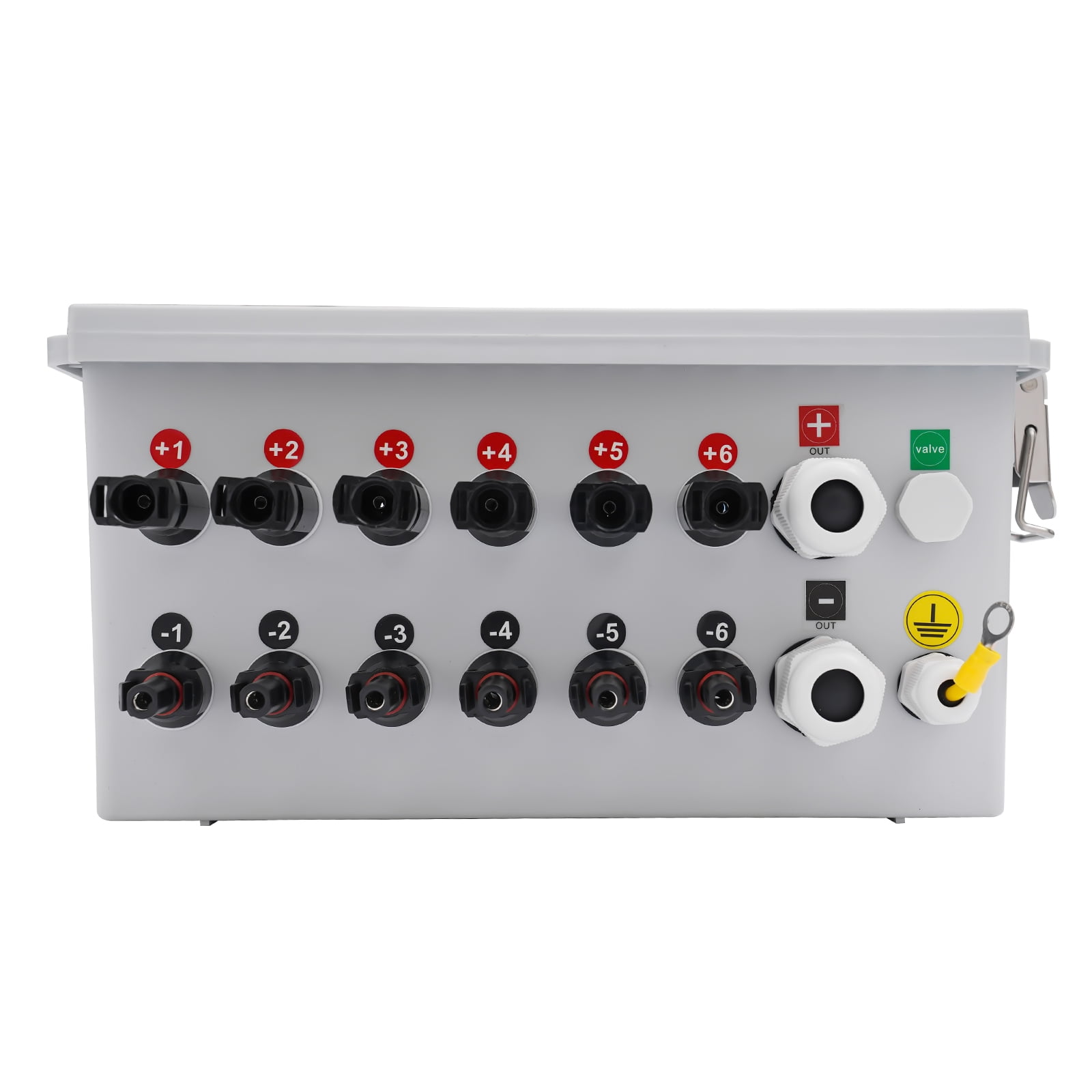

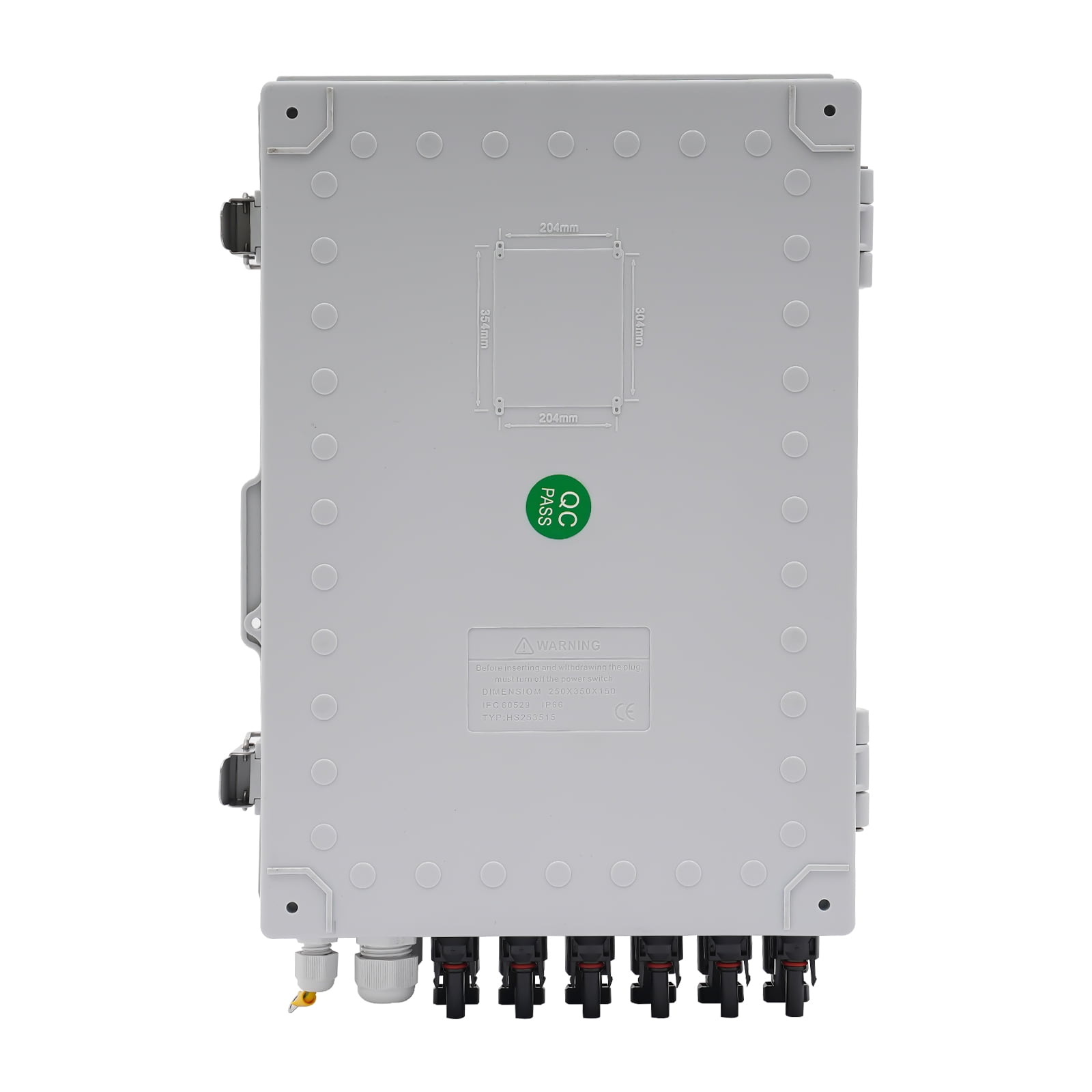

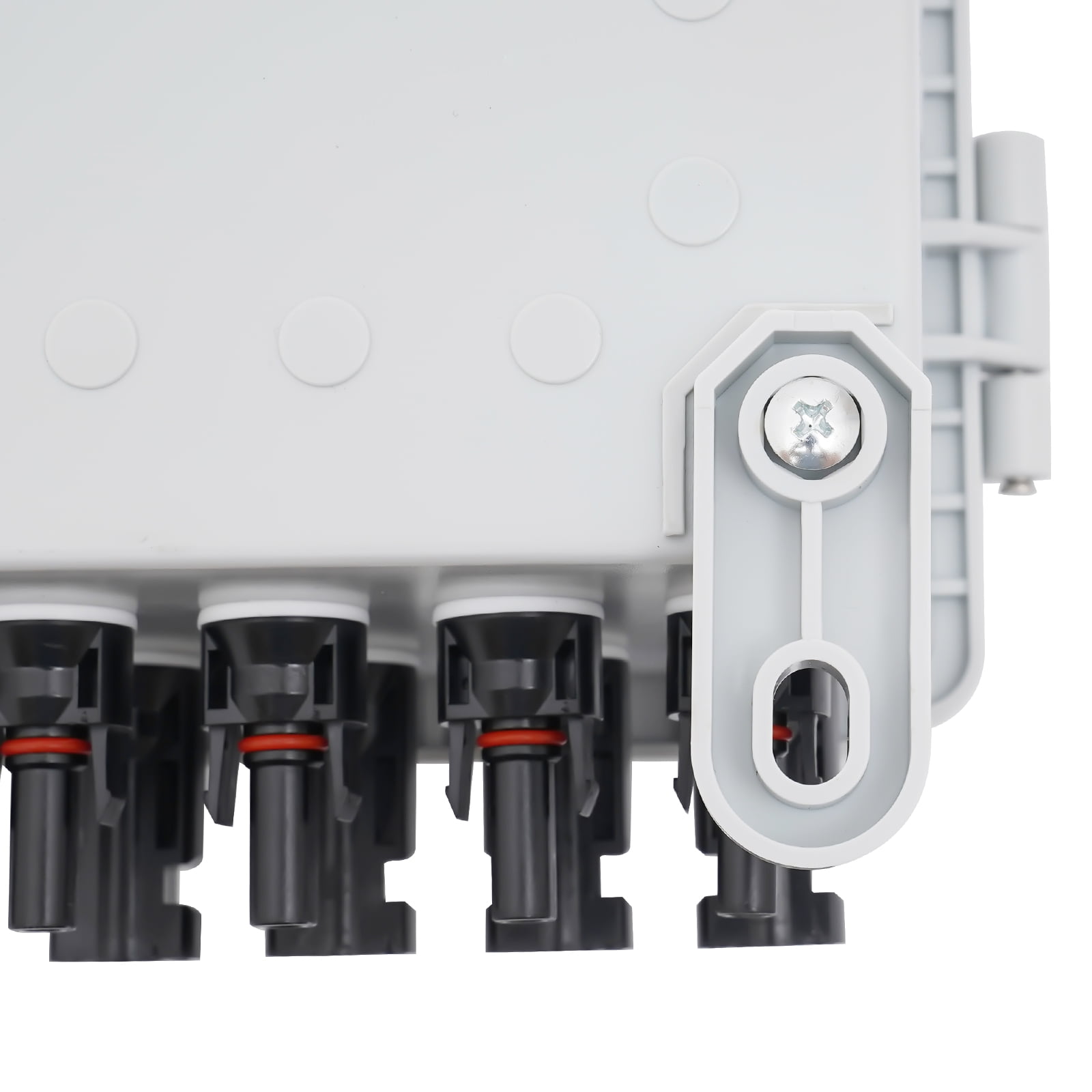

• Easy Installation&Wiring: A plug-and-play and pre-connected cable offers an easy solution for solar panel connection, saving at least 1-2 hours of wiring by hand. With 4 mounting plates, it can be mounted on any regular surface. And the built-in ground wire connector makes ground wire installation available.
